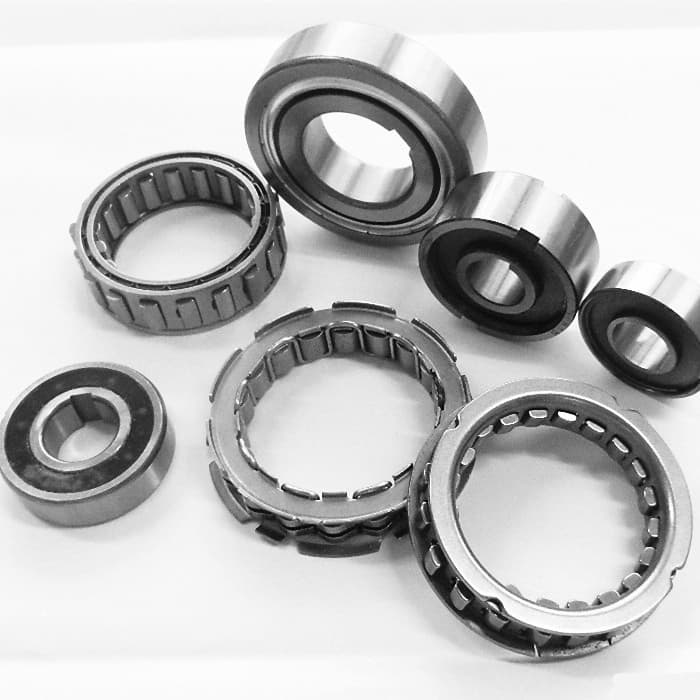

AS15 is a one-way clutch,that is used
for Overrunning, Indexing and Backstopping, this type is
non-bearing supported, this is exactly the same size as
any 6202 ball bearing, you will need one of the 6202
beairngs to support it, one way Sprag/Clutch Freewheel
and also called as Backstops. AS15 is used in any
application that requires one direction rotation, such as
mining, hydraulic, textile, printing and washing
machines, conveyor systems that carry products to a
higher level should not be reversed because of gravity
during any power shortage.
-
Item: AS15 Clutch
-
Type: One Way Clutch
-
Applications: Overrunning,
Indexing, Backstopping
-
Dimensions: 15mm x 35mm x
11mm/metric
-
Inner Diameter: 15mm
-
Outer Diameter: 35mm
-
Width: 11mm
-
Torque: 11 TKN
-
Max Torque: 27.5 TKN
-
Inner Race Overrun: 2,800
RPM
-
Outer Race Overrun: 4,300
RPM
-
Quantity: One Clutch
|
Dimension
(mm)
|
|
d
|
D
|
D1
|
L
|
s
|
e
|
f
|
|
15
|
35
|
31
|
11
|
1.4
|
0.6
|
0.6
|
|
