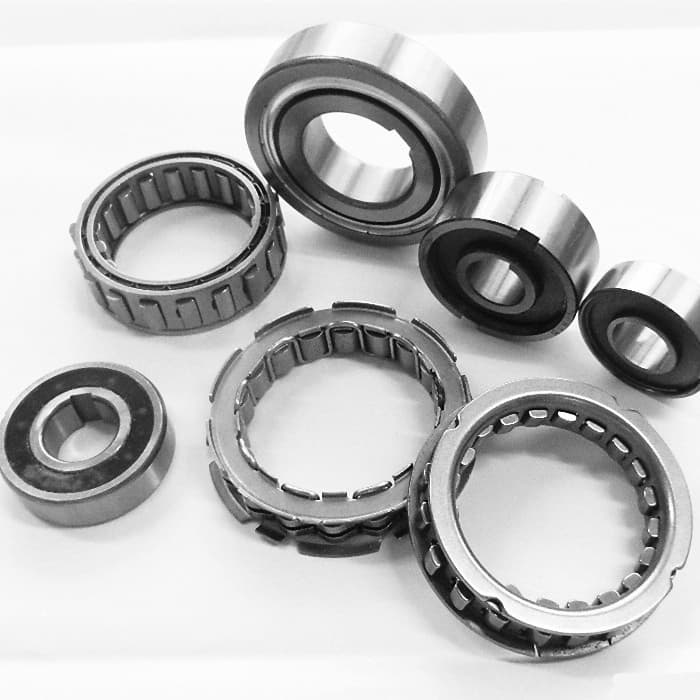

AS20 is a one-way clutchthat is used
for Overrunning, Indexing and Backstopping, this type is
non-bearing supported, this is exactly the same size as
any 6204 ball bearing, you will need one of the 6204
beairngs to support it, One way Bearing Sprag/Clutch
Freewheel and also called as Backstops. AS20 is used in
any application that requires one direction rotation,
such as mining, hydraulic, textile, printing and washing
machines, conveyor systems that carry products to a
higher level should not be reversed because of gravity
during any power shortage.
-
Item: AS20 Clutch
-
Type: One Way Clutch
-
Applications: Overrunning,
Indexing, Backstopping
-
Dimensions: 20mm x 47mm x
14mm/metric
-
Inner Diameter: 20mm
-
Outer Diameter: 47mm
-
Width: 14mm
-
Torque: 32 TKN
-
Max Torque: 80 TKN
-
Inner Race Overrun: 2,200
RPM
-
Outer Race Overrun: 3,300
RPM
-
Quantity: One Clutch
|
Dimension
(mm)
|
|
d
|
D
|
D1
|
L
|
s
|
e
|
f
|
|
20
|
47
|
40
|
14
|
2.4
|
0.8
|
0.8
|
|
