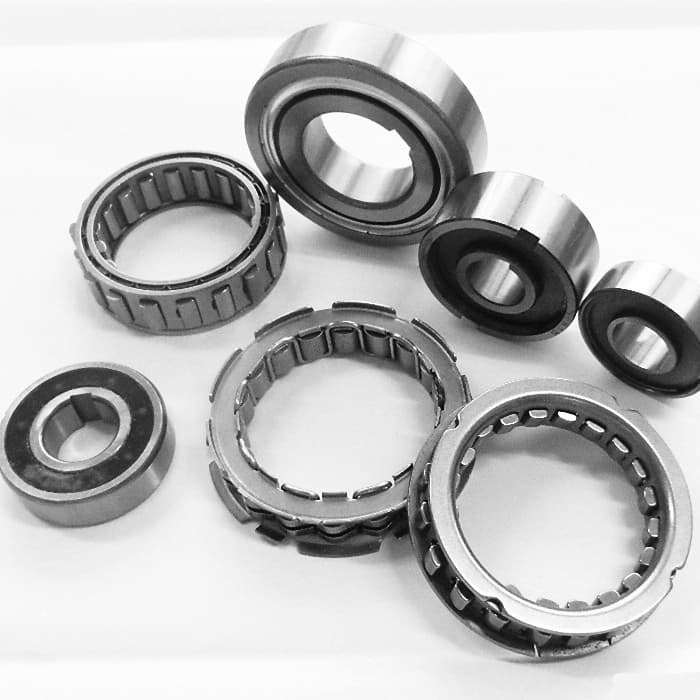

AS35 is a one-way clutch,that is used
for Overrunning, Indexing and Backstopping, this type is
non-bearing supported, this is exactly the same size as
any 6207 ball bearing, you will need one of the 6207
beairngs to support it, One way Bearing Sprag/Clutch
Freewheel and also called as Backstops. AS35 is used in
any application that requires one direction rotation,
such as mining, hydraulic, textile, printing and washing
machines, conveyor systems that carry products to a
higher level should not be reversed because of gravity
during any power shortage.
-
Item: AS35 Clutch
-
Type: One Way Clutch
-
Applications: Overrunning,
Indexing, Backstopping
-
Dimensions: 35mm x 72mm x
17mm/metric
-
Inner Diameter: 35mm
-
Outer Diameter: 72mm
-
Width: 17mm
-
Torque: 114 TKN
-
Max Torque: 285 TKN
-
Inner Race Overrun: 1,300
RPM
-
Outer Race Overrun: 2,000
RPM
-
Quantity: One Clutch
|
Dimension
(mm)
|
|
d
|
D
|
D1
|
L
|
s
|
e
|
f
|
|
35
|
72
|
64
|
17
|
2.5
|
0,8
|
1
|
|
