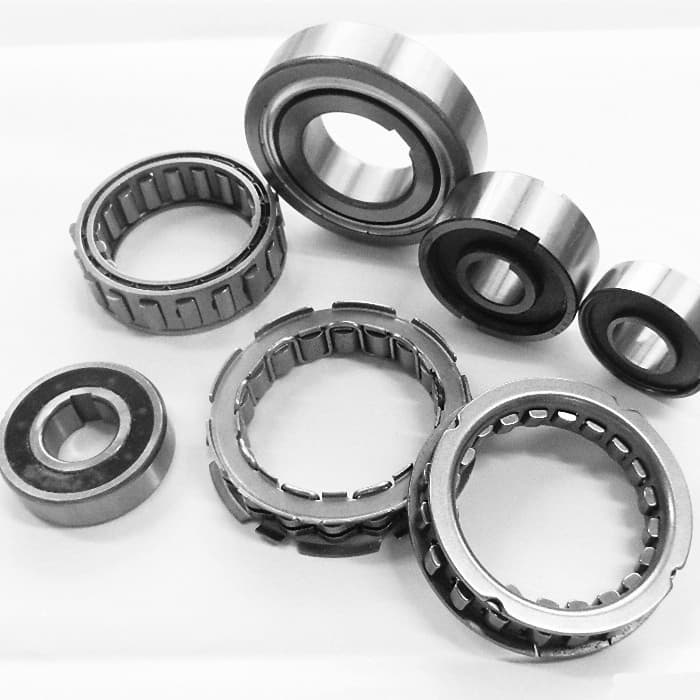

AS40 is a one-way clutch, that is
used for Overrunning, Indexing and Backstopping, this
type is non-bearing supported, you will need one of the
6205 beairngs to support it, One way Bearing Sprag/Clutch
Freewheel and also called as Backstops. AS40 is used in
any application that requires one direction rotation,
such as mining, hydraulic, textile, printing and washing
machines, conveyor systems that carry products to a
higher level should not be reversed because of gravity
during any power shortage.
-
Item: AS40 Clutch
-
Type: One Way Clutch
-
Applications: Overrunning,
Indexing, Backstopping
-
non-bearing supported, External
6205 Bearing Support Required
-
Dimensions: 40mm x 80mm x
18mm/metric
-
Inner Diameter: 40mm
-
Outer Diameter: 80mm
-
Width: 18mm
-
Torque: 148 TKN
-
Max Torque: 10 Tr
-
Inner Race Overrun: 1,200
RPM
-
Outer Race Overrun: 1,800
RPM
-
Quantity: One Clutch
|
Dimension (mm)
|
|
d
|
D
|
D1
|
L
|
s
|
e
|
f
|
|
40
|
80
|
72
|
18
|
2.5
|
0.8
|
1
|
|
