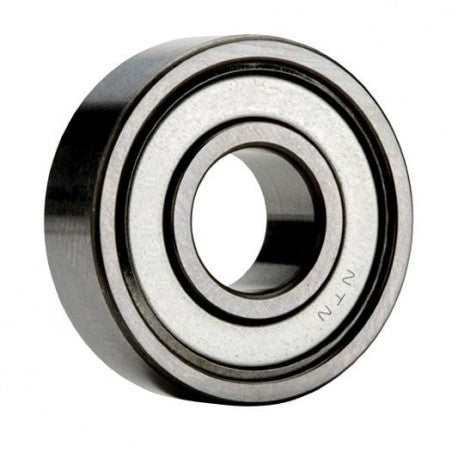

BL211Z NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 55 mm
finish/coating : Uncoated
outside diameter : 100 mm
bearing material : High Carbon Chrome Steel
overall width : 21 mm
bore type : Round
cage material : Steel
inner ring width : 21 mm
closure type : Single Shield
outer ring width : 21 mm
maximum rpm (grease) : 5800 rpm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
maximum rpm (oil) : 6800 rpm
internal clearance : CN
fillet radius : 1.5 mm
operating temperature range : -40 to 120 ºC
