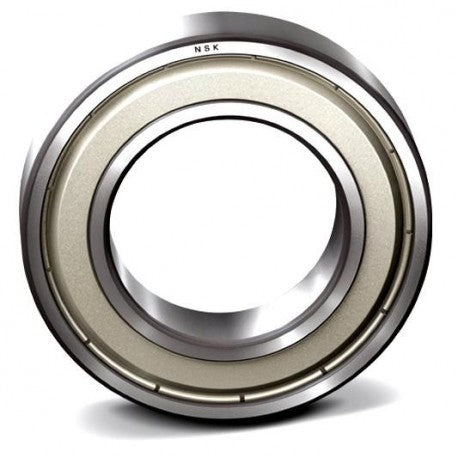

BL213Z NSK Radial/Deep Groove Ball Bearings Features & Specifications:
dynamic load capacity : 63500 N
outside diameter : 120 mm
Bore Diameter : 65 mm
static load capacity : 60000 N
overall width : 23 mm
precision rating : ABEC 1 (ISO Class Normal)
bore type : Round
finish/coating : Uncoated
closure type : Single Shield
cage material : Steel
row type & fill slot : Single Row Filling Slot
outer ring width : 23 mm
fillet radius : 1.5 mm
snap ring included : Without Snap Ring
internal clearance : C0
maximum rpm : 6300 RPM
operating temperature range : Maximum of +250 °F
Series : BL
