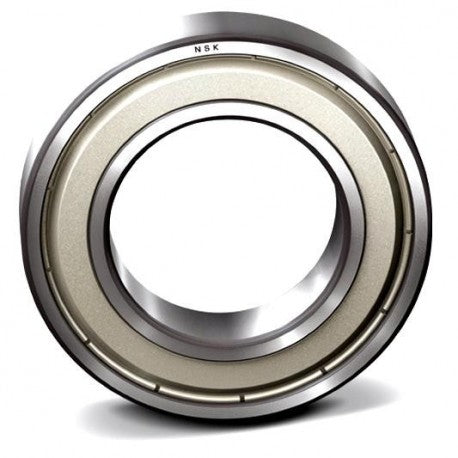

BL316ZZ NSK Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 130000 N
outside diameter : 170 mm
Bore Diameter : 80 mm
precision rating : ABEC 1 (ISO Class Normal)
overall width : 39 mm
finish/coating : Uncoated
bore type : Round
cage material : Steel
closure type : Double Shielded
outer ring width : 39 mm
row type & fill slot : Single Row Filling Slot
fillet radius : 2.1 mm
maximum rpm : 4500 RPM
internal clearance : C0
operating temperature range : -10 to +110 °C
Series : BL
dynamic load capacity : 136000 N
