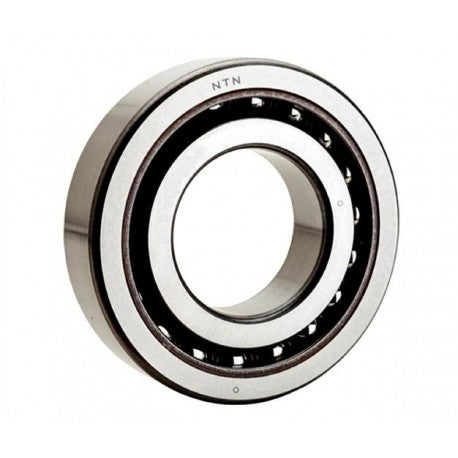

BST20X47-1BP4 NTN Angular Contact Bearings bore Features & Specifications:
Radial static load capacity : 37500 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 20 mm
outside diameter : 47 mm
overall width : 15 mm
cage material : Nylon
contact angle : 60 °
finish/coating : Uncoated
row type & fill slot : Single-Row Non-Fill Slot
precision rating : ISO Class 4
bore type : Round
fillet radius : 1 mm
closure type : Open
Series : BST
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
