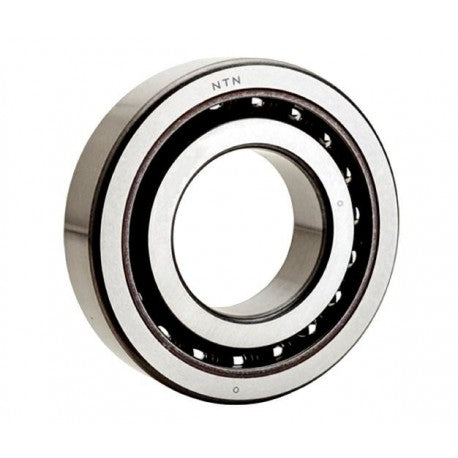

BST40X72-1BP4 NTN Angular Contact Bearings bore Features & Specifications:
Bore Diameter : 40 mm
radial dynamic load capacity : 31000 N
outside diameter : 72 mm
Radial static load capacity : 70000 N
overall width : 15 mm
contact angle : 60 °
operating temperature range : -40 to 120 ºC
cage material : Nylon
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : ISO Class 4
internal clearance : C0
bore type : Round
fillet radius : 1 mm
closure type : Open
Series : BST
snap ring included : Without Snap Ring
