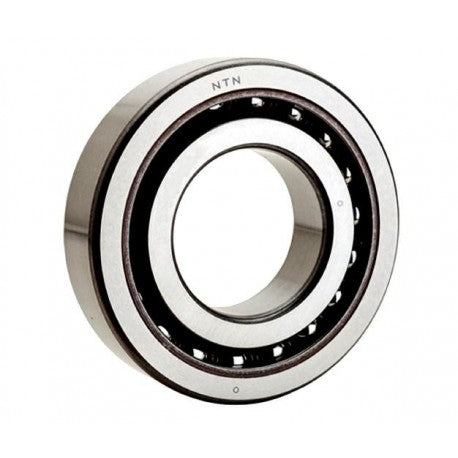

BST40X72-20EP4 NTN Angular Contact Bearings bore Features & Specifications:
radial dynamic load capacity : 31000 N
outside diameter : 72 mm
Bore Diameter : 40 mm
Radial static load capacity : 70000 N
overall width : 15 mm
operating temperature range : -40 to 120 ºC
contact angle : 60 °
cage material : Nylon
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C0
precision rating : ISO Class 4
fillet radius : 1 mm
bore type : Round
closure type : Open
Series : BST
snap ring included : Without Snap Ring
