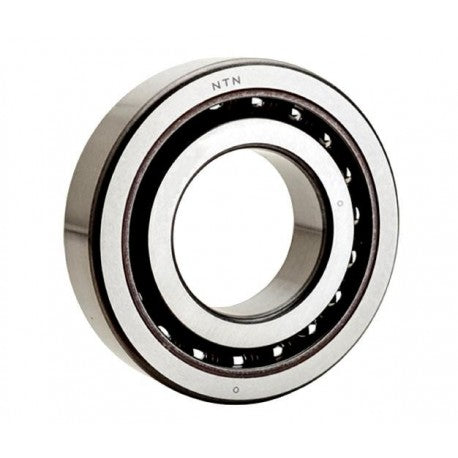

BST50X100-1BP4 NTN Angular Contact Bearings bore Features & Specifications:
radial dynamic load capacity : 62000 N
outside diameter : 100 mm
Bore Diameter : 50 mm
Radial static load capacity : 153000 N
overall width : 20 mm
operating temperature range : -40 to 120 ºC
contact angle : 60 °
cage material : Nylon
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : ISO Class 4
fillet radius : 1 mm
closure type : Open
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
