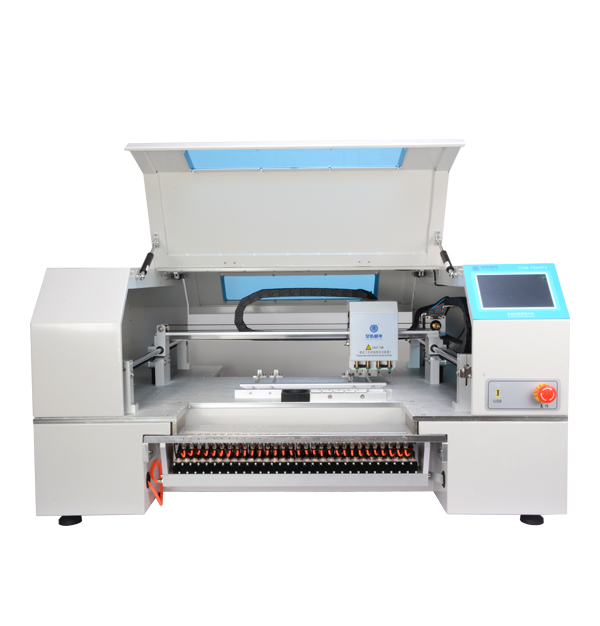

CHMT560P4 4 head pick and place machine SMT LINE

CHMT560P4 4 head pick and place machine SMT LINE

Regular price $9,450.00
Regular price Sale price $9,450.00
Sold out
15 people are viewing this right now

AvailabilityLow stock: 1 left

Product
SKU: CHMT560P4-CHMT560P4-SMT-LINE
Tags: Category_MRO

Need help or advice?

if you need support on selection,contact us at: [email protected]

FAQ

How long the processing time for the order?

For most orders, the processing time is 1-3 days.When encountering temporary shortage, we will notify you of delayed shipment or refund same day.

I have a technical question about a product?

You'll find product data sheet at DESCRIPTION.
If this information is not sufficient to answer your question, please contact us by email or phone.

Are there price benefits in case of substantial purchase quantities?

Yes, If you are interested in ordering a large volume or bulk order we can give you special pricing.

Do the product images correspond to the real articles?

Due to the large number of articles, the individual photo of each article cannot be made available. You just need verify the part number and size for your order. We ensure that we ship the correct part.

By which shipping company is the article dispatched?

This depends on the weight and size of your order. We will choose the appropriate mode of transportation according to the freight, Standard Express:DHL/UPS/FEDEX About 5-8days ,EMS about 10-15 days, EUB/PostNL about 15-25days

Regarding tariffs: All of our orders do not include local tariffs. If tariffs are incurred locally, you should pay for them


About Us

One-stop shopping for bearing and transmission products.

Bearing shop online - Best Bearings Supplier In China, offers variety of bearings and related products with an easy and friendly web store to help you locate and buy bearings you needWe've tried to give you as much information as possible but if there's something missing that you need to know, you can get in touch with us.

Shipping & Returns

Shipping and Shipping Costs

When you click shipping
cart, you will put in your country, state and zip which will give you up
to some options depending on weight and size with your cost. If you
choose to ship UPS/DHL/TNT collect on your account, you can choose the
"FOB CHINA " and email to us your information.

We will choose the
appropriate mode of transportation according to the freight
standard,DHL/UPS/FEDEX About 4-7days ,EMS about 15days

If a shipment is too heavy
and needs to ship on a pallet, it will not give you any shipping
options. You can choose the "FOB CHINA ",Please contact us to get a
freight quote. Otherwise proceed to checkout and will contact you with
freight costs or give you the option to ship collect on your account.

If you need more information about this before you order, please email us:[email protected].

Returns Policy

You may return new, unused
item(s) within 15 days of delivery for a full refund. If the return is
based on our error (we sent incorrect or defective items), we will pay
for the return shipping. Otherwise, you will be responsible for return
shipping.

Once your items are
received in our warehouse and checked in properly, you will receive a
refund either back to your PayPal account or to your credit card. Please
allow 2-3 business days once we have received your return.



Cancel Policy

If you need cancel the unshipped order, please contact us to confirm if the shipment has been made.
If
the order is not processed, you can cancel your order, but you will
need to bear the transaction fees incurred by PayPal or other payment
methods.
If your order is processed, cancel will not be supported(Excluding quality issues).

View full product details

CHMT560P4 4 nozzles pick and place machine

Feeder not included, free shipping to USA
Standard Accessories for CHMT560P4:
HS Code 8479.89.92.00 Automated electronic component placement machines of a kind used solely or principally for the manufacture of printed circuit assemblies.

1) Pick and Place MachineCHMT560P4: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Grease: 1
6) Hex wrench: 6
7) Tweezers: 1
8) Brush: 1
9) English user manual: 1

CHM-T560P4 parameters


Parameters



Model

CHMT560P4

XYZ Axis travel

600mm(X)×630mm(Y)×20mm(Z)

PCB max size

400mm(L)×270mm(W)

Support components

0402~5050, SOP, QFN,BGA etc.

Mounting speed

·         Without vision:8500cph

·         With Vision:6600cph

Precision

±0.015mm

Placement head

4 heads

Feeding system

Support max 60pcs feeder

·         11pcs general IC stack

·         Support self-defined IC tray

Vision detection

Double camera (up & down)

Motor control

·         XY Axis stepper motor with encoder closed-loop control

·         Flexible S deceleration

·         Z Axis reset detection

Components leakage detection

Vacuum and visual detection

Main board

High-reliability industry motherboard

Touch Screen

7 inches industry screen

Operation system

Embedded Linux system

Vacuum detection

2pcs (in-build) mute type pump (-92KPa)

Power supply

AC220V 50Hz / AC110V 60Hz

Air supply

0.5MPa

Dimension

1180mm(L)×870mm(W)×600mm(H)

Power

250W

Net weight

130Kg



Machine description:
CHMT530P4 has 4 heads, mounting speed is faster. For small SMT production, it is your good helper!
The operation system is embedded Linux system, the main board of machine was researched by ourselves, which is more reliable than windows system, and life time is much longer. CHMT530P4 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP, QFN, LQFP, Diode, Transistor, BGA...etc, which can meet more customers' demand.

Vision System Ensure Accuracy
Auto correction offset
The double CCD vision cameras can auto calibrate the offset for all different kinds of components and ICs(auto correction of pick position and angle). Industry camera with high accuracy taking image of pins if IC, to ensure the patch accuracy.

60pcs Yamaha pneumatic feeder supported
simple & convenient operation
CHM-T560P4 work with standard Yamaha pneumatic feeder ,it is more stable and longer lifetime.  pneumatic feeders can improve the working efficient a lot. It can also work with Yamaha vibration feeder.

Z Axis Detection
Z axis detection function can self-checking the height and angle during placement.
Make sure machine work perfectly with different kinds of components.
9 kinds of Juki nozzles supported, magnet inside, you can change the nozzle by hand, no need wrench, very convenient.

Closed-loop Motion Control System
it can be four-axis linkage, move faster and smoothly. both nozzle can working together, not single nozzle working any more, support single step. X,Y axis encoder installed, never lose step. Flexible S accelerate and decelerate, make sure high speed placement working perfectly.

Industry Touch Screen
Machine uses embedded Linux operation system, This system runs stable with strong compatibility and powerful function. Machine has a in-build 7 inch full touch screen, external USB mouse also accepted. Very easy and convenient operation. You can get a quick start within half an hour.

Mark point auto calibration
more accurate with vision system
After PCB has been put on machine, the machine will use the camera to automatically find the mark point, calibrate the PCB and avoid deviation.

Front IC Bulk Material Area
11pcs front bulk IC stack, suitable for some bulk ICs. more convenient.

IC Tray Supported
software allow 20 user-defined IC tray
User can add one or more IC tray in software, you just need to positioning the first component and the last component, then machine can auto continuous picking.

Package Weight: 170.0kg
Package Size: 130cm x 96cm x 82cm
Packing: wooden case (safe packing)
