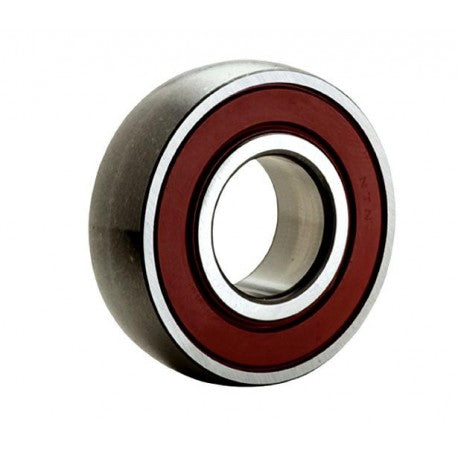

CS203LLU NTN Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 4400 N
outside diameter : 40 mm
Bore Diameter : 17 mm
precision rating : Class 0
overall width : 12 mm
finish/coating : Uncoated
bore type : Round
bearing material : Through Hardened Steel
closure type : Double Sealed
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 12 mm
outer ring width : 12 mm
snap ring included : Without Snap Ring
internal clearance : CN
fillet radius : 0.6 mm
operating temperature range : -40 to 120 ºC
Series : CS2
