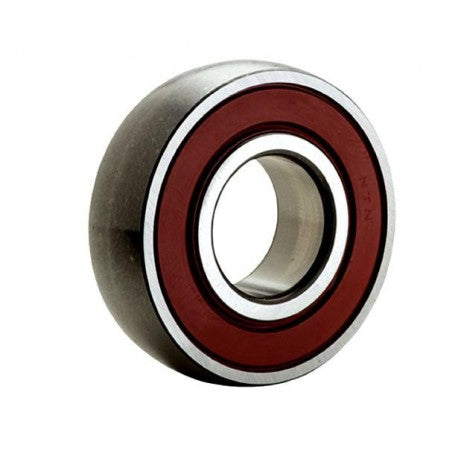

CS205-100D1V14 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 0.5906 in
snap ring included : Without Snap Ring
outer ring width : 0.5906 in
internal clearance : CN
fillet radius : 0.0394 in
Bore Diameter : 1.0000 in
static load capacity : 1770 lbf
outside diameter : 2.0472 in
precision rating : Standard
overall width : 0.5906 in
finish/coating : Uncoated
bore type : Round
bearing material : Through Hardened Steel
closure type : Double Sealed
operating temperature range : -40 to 250 ºF
Series : CS2
