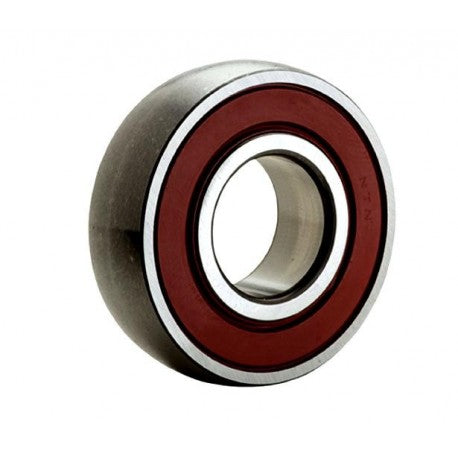

CS306LLU NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 30 mm
static load capacity : 15000 N
outside diameter : 72 mm
precision rating : Class 0
overall width : 19 mm
bore type : Round
finish/coating : Uncoated
bearing material : Through Hardened Steel
closure type : Double Sealed
cage material : Steel
inner ring width : 19 mm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
outer ring width : 19 mm
internal clearance : CN
fillet radius : 1.1 mm
operating temperature range : -40 to 120 ºC
