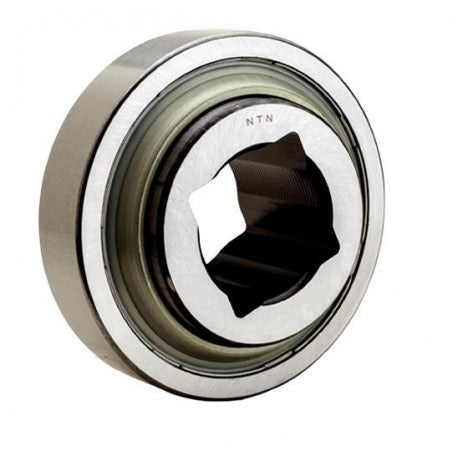

DC208TT6 NTN Farm Implement Bearings bore Features & Specifications:
precision rating : Class 0
outside diameter design : Straight
outer ring width : 0.7087 in
internal clearance : C3
inner ring width : 1.4370 in
dynamic load capacity : 6550 lbf
fillet radius : 0.0591 in
bore size : 1.0300 in
operating temperature range : -40 to 250 ºF
outside diameter : 3.1496 in
cage material : Steel
overall width : 1.4370 in
finish/coating : Uncoated
bore type : Square
application : Agriculture Bearing
closure type : Double Seal
static load capacity : 4000 lbf
