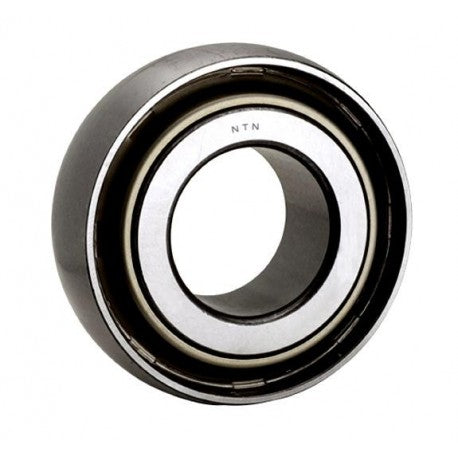

DS209TT2 NTN Farm Implement Bearings bore Features & Specifications:
row type & fill slot : Single Row Non-Fill Slot
cage material : Steel
bore size : 1.7717 in
outside diameter : 3.3465 in
overall width : 1.1890 in
finish/coating : Uncoated
bore type : Round
application : Agriculture Bearing
closure type : Double Seal
precision rating : Class 0
outside diameter design : Spherical
outer ring width : 1.1890 in
internal clearance : C3
inner ring width : 1.1890 in
dynamic load capacity : 7300 lbf
fillet radius : 0.0591 in
static load capacity : 4600 lbf
Series : 3AC
