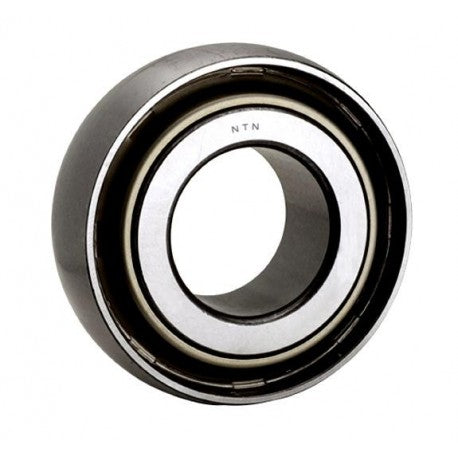

DS209TTR10 NTN Farm Implement Bearings bore Features & Specifications:
bore size : 1.7780 in
row type & fill slot : Single Row Non-Fill Slot
outside diameter : 3.3465 in
cage material : Steel
overall width : 1.4375 in
bore type : Round
finish/coating : Uncoated
application : Agriculture Bearing
closure type : Double Seal
precision rating : Class 0
outer ring width : 0.8661 in
outside diameter design : Spherical
internal clearance : C3
inner ring width : 1.4375 in
dynamic load capacity : 7300 lbf
fillet radius : 0.0433 in
static load capacity : 4600 lbf
Series : 1AC
