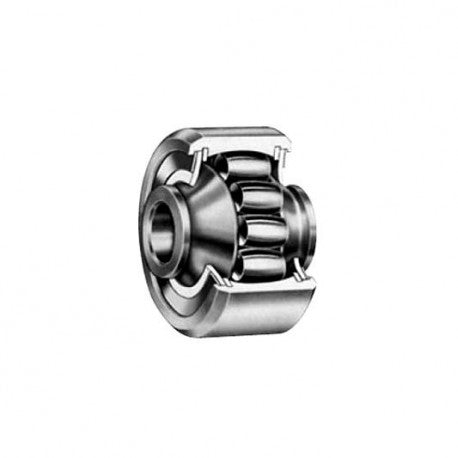

DSP8FS428 FIJ Double-Row Self-Aligning Ball Features & Specifications:
cage material : No Cage
outside diameter : 1.6875 in
Bore Diameter : 0.5000 in
finish/coating : Cadmium Plated
overall width : 1.0000 in
maximum misalignment : 10 °
bore type : Straight
application : Airframe Control
closure type : Double Sealed
outer ring width : 20.62 mm
internal clearance : C0
inner ring width : 25.4 mm
Series : DSP
precision rating : Not Rated
bearing material : Steel
standards met : SAE-AS7949, MIL-PRF-23827, AISI 52100
