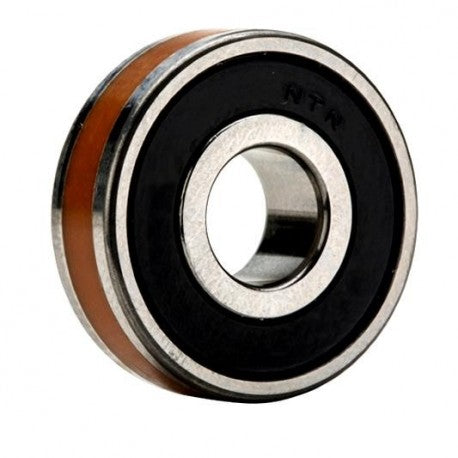

EC-6203LLBC3 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
outer ring width : 12 mm
row type & fill slot : Single Row Non-Fill Slot
maximum rpm (grease) : 18000 rpm
snap ring included : Without Snap Ring
maximum rpm (oil) : 21000 rpm
internal clearance : C3
fillet radius : 0.6 mm
Bore Diameter : 17 mm
finish/coating : Uncoated
outside diameter : 40 mm
bearing material : High Carbon Chrome Steel
overall width : 12 mm
cage material : Steel
bore type : Round
inner ring width : 12 mm
closure type : Double Sealed
operating temperature range : -40 to 120 ºC
maximum rpm : 18000 RPM
