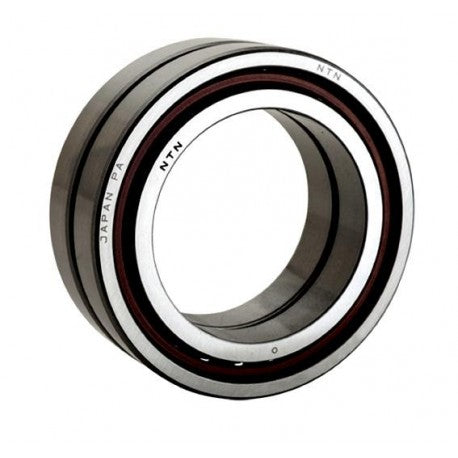

HTA010T1DB/GNP4L NTN Duplex Angular Contact Bearings Features & Specifications:
precision rating : ISO Class 4
cage material : Phenolic
Bore Diameter : 50 mm
outside diameter : 80 mm
overall width : 28.5 mm
finish/coating : Uncoated
contact angle : 40 °
inner ring width : 14.25 mm
duplex type : HTA Type
maximum rpm (oil) : 14600 rpm
closure type : Open
maximum rpm (grease) : 11500 rpm
operating temperature range : -40 to 120 ºC
outer ring width : 14.25 mm
radial dynamic load capacity : 29600 N
fillet radius : 1 mm
Radial static load capacity : 55500 N
