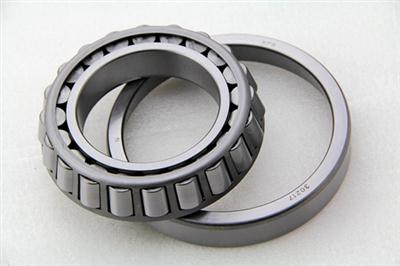

JLM813049+JLM813010 Tapered Roller Bearing Set 2.7559x4.3307x1.024
Tapered Roller Bearings as Cone + Cup in Set
The price is FOB CHINA, Brand(Manufacturer): FIJ
Payment Terms: T/T or paypal or western union.
Package: Standard or According to your requirements.
Bearing shop online - Best Bearings Supplier In China
Not all bearings are equal, and not all bearings can work freely. But with the right bearings, you can make your machine worry-free working. Being one of the best Bearings suppliers in China, we can offer you the right bearings based on your needs.
if you need support on selection of bearings,contact us at [email protected]
Cone Part Number
|
JLM813049 |
Cup Part Number
|
JLM813010 |
Design Units
|
Metric |
Bearing Weight
|
0.900 Kg1.90 lb |
Cage Type
|
Stamped Steel |
d - Bore
|
70 mm2.7559 in |
D - Cup Outer Diameter
|
110.000 mm4.3307 in |
B - Cone Width
|
25.000 mm0.9843 in |
C - Cup Width
|
20.500 mm0.8071 in |
T - Bearing Width
|
26.000 mm1.0236 in |
| R - Cone Backface "To Clear" Radius1 |
1.020 mm0.040 in |
| r - Cup Backface "To Clear" Radius2 |
2.54 mm0.100 in |
da - Cone Frontface Backing Diameter
|
76.96 mm3.03 in |
db - Cone Backface Backing Diameter
|
77.98 mm3.07 in |
Da - Cup Frontface Backing Diameter
|
105.40 mm4.15 in |
Db - Cup Backface Backing Diameter
|
98.04 mm3.86 in |
Ab - Cage-Cone Frontface Clearance
|
3.3 mm0.13 in |
Aa - Cage-Cone Backface Clearance
|
1.3 mm0.05 in |
| a - Effective Center Location3 |
0.30 mm0.01 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 |
29700 N6680 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 |
115000 N25700 lbf |
C0 - Static Radial Rating
|
168000 N37800 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 |
24800 N5570 lbf |
