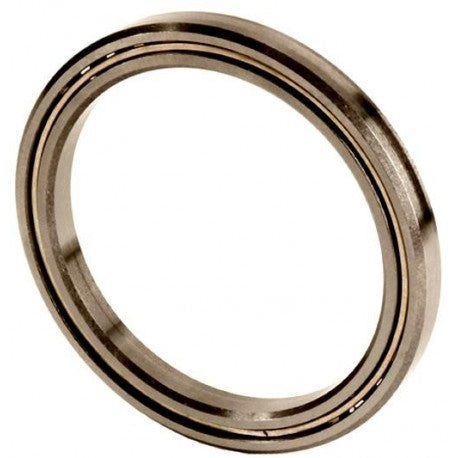

KD065AR0 FIJ Thin-Section Ball Bearings bore Features & Specifications:
Radial static load capacity : 5530 lb
bearing material : Steel
Bore Diameter : 6.5000 in
outside diameter : 7.5000 in
overall width : 0.5000 in
precision rating : ABEC 1 (ISO Class Normal)
bearing type : Angular Contact
ball retainer material : Brass
closure type : Open
ball retainer type : Circular Pocket Separator
internal clearance : C0
axial static load capacity : 15960 lb
operating temperature range : -65 to +250 °F
fillet radius : 0.06 in
radial dynamic load capacity : 2346 lb
standards met : AISI 52100
