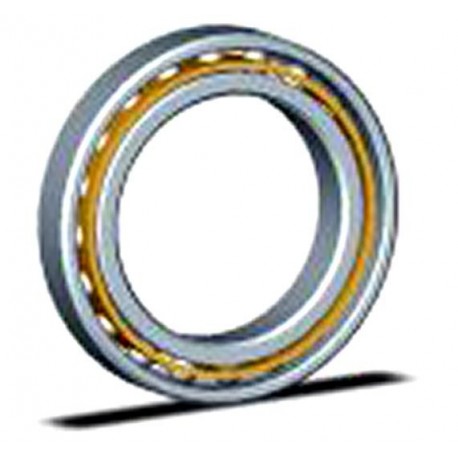

KD120CP0 FIJ Thin-Section Ball Bearings bore Features & Specifications:
standards met : AISI 52100
internal clearance : C0
Bore Diameter : 12.0000 in
operating temperature range : -65 to +250 °F
outside diameter : 13.0000 in
bearing material : Steel
overall width : 0.5000 in
precision rating : ABEC 1 (ISO Class Normal)
bearing type : Radial Contact
fillet radius : 0.06 in
closure type : Open
