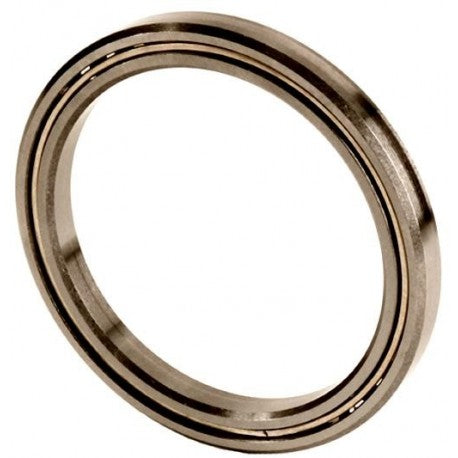

KG070AR0 FIJ Thin-Section Ball Bearings bore Features & Specifications:
Bore Diameter : 7.0000 in
Radial static load capacity : 15160 lb
outside diameter : 9.0000 in
bearing material : Steel
overall width : 1.0000 in
bearing type : Angular Contact
precision rating : ABEC 1 (ISO Class Normal)
ball retainer material : Brass
closure type : Open
ball retainer type : Circular Pocket Separator
axial static load capacity : 43780 lb
internal clearance : C0
operating temperature range : -65 to +250 °F
fillet radius : 0.08 in
radial dynamic load capacity : 8035 lb
standards met : AISI 52100
