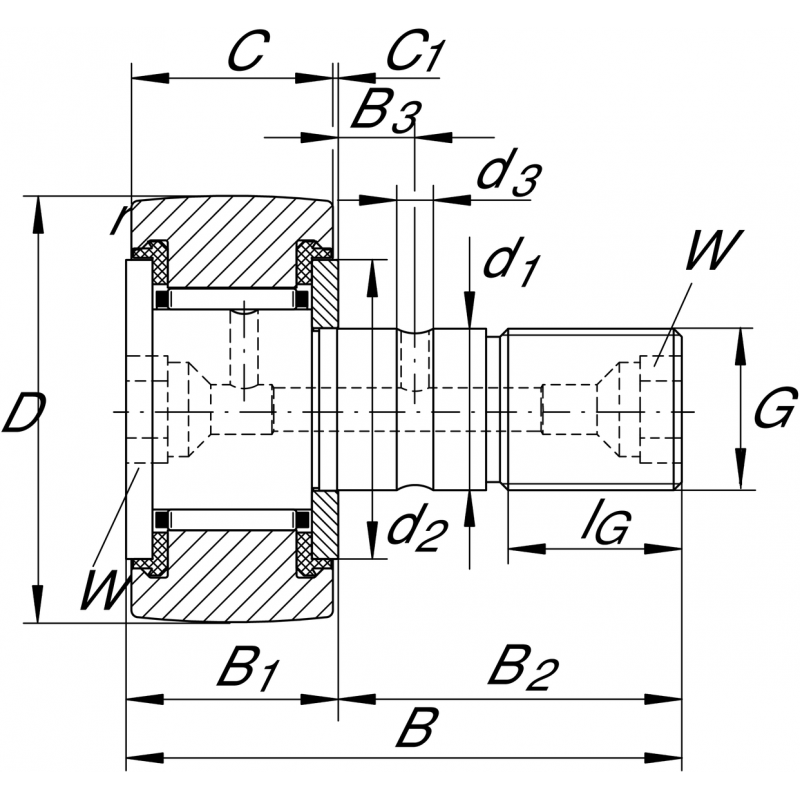

| Maximum witdh of thrust washer | B1 | 21.60 | mm |
| Thread length | IG | 19 | mm |
| Diameter lubrication hole | ds | 3 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Width, outer ring | C | 20 | mm |
| Bolt/stud length effectively | B2 | 36.50 | mm |
| Width of flats | W | 8 | mm |
| Thread | M18X1,5 | ||
| Stop diameter of thrust washer | d2 | 31.50 | mm |
| Protrusion outer ring to thrust washer | C1 | 0.80 | mm |
| Distance to lubrication hole | Ca | 8 | mm |
| Speed on permanent grease lubrication | nD G | 2,900 | 1/min |
| Basic static load rating, radial | C0r | 16,000 | N |
| Width | B | 58 | mm |
| Outside diameter | D | 40 | mm |
| Fatigue load limit, radial | Cur | 2,130 | N |
| Basic dynamic load rating, radial | Cr | 10,900 | N |
| Fit diameter of roller stud / stud | d1 | 18 | mm |
