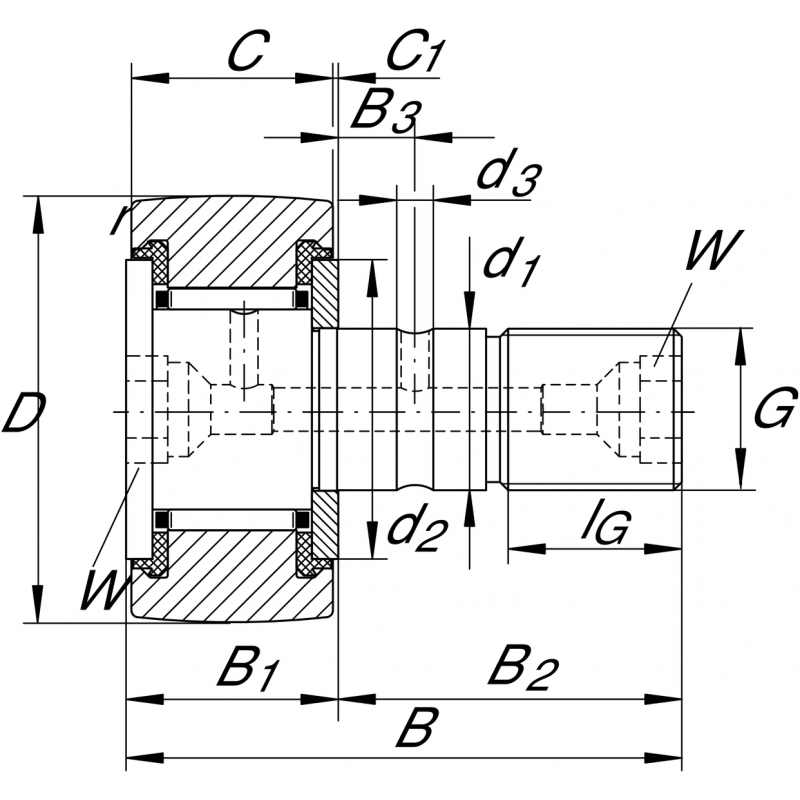

| Maximum witdh of thrust washer | B1 | 37 | mm |
| Thread length | IG | 32 | mm |
| Diameter lubrication hole | ds | 4 | mm |
| Minimum chamfer dimension | rmin | 1.10 | mm |
| Width, outer ring | C | 35 | mm |
| Bolt/stud length effectively | B2 | 63 | mm |
| Width of flats | W | 14 | mm |
| Thread | M30X1,5 | ||
| Stop diameter of thrust washer | d2 | 53 | mm |
| Protrusion outer ring to thrust washer | C1 | 1 | mm |
| Distance to lubrication hole | Ca | 15 | mm |
| Speed on permanent grease lubrication | nD G | 1,300 | 1/min |
| Basic static load rating, radial | C0r | 78,000 | N |
| Width | B | 100 | mm |
| Outside diameter | D | 80 | mm |
| Fatigue load limit, radial | Cur | 11,200 | N |
| Basic dynamic load rating, radial | Cr | 38,500 | N |
| Fit diameter of roller stud / stud | d1 | 30 | mm |
