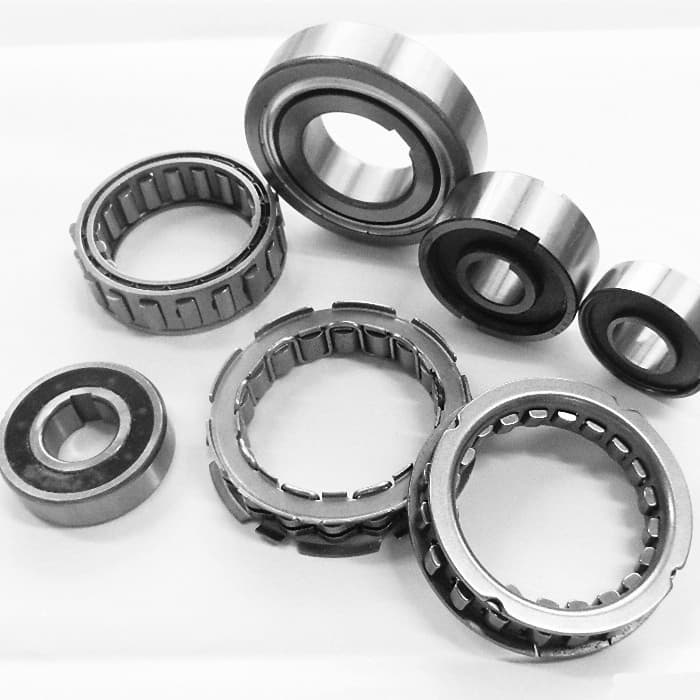

NSS20 is a one-way clutch that is
used for Overrunning, Indexing and Backstopping, this
type is non-bearing supported, this is exactly the same
size as any 6204 ball bearing, you will need one of the
6204 beairngs to support it, One way Bearing Sprag/Clutch
Freewheel and also called as Backstops. NSS20 is used in
any application that requires one direction rotation,
such as mining, hydraulic, textile, printing and washing
machines, conveyor systems that carry products to a
higher level should not be reversed because of gravity
during any power shortage.
-
Item: NSS20 Clutch
-
Type: One Way Clutch
-
Applications: Overrunning,
Indexing, Backstopping
-
Dimensions: 20mm x 47mm x
14mm/metric
-
Inner Diameter: 20mm
-
Outer Diameter: 47mm
-
Width: 14mm
-
Torque: 32 TKN
-
Max Torque: 80 TKN
-
Inner Race Overrun: 2,200
RPM
-
Outer Race Overrun: 3,300
RPM
-
Quantity: One Clutch
|
Dimension (mm)
|
|
d
|
D
|
D1
|
L
|
s
|
e
|
f
|
|
20
|
47
|
40
|
14
|
2.4
|
0.8
|
0.8
|
|
