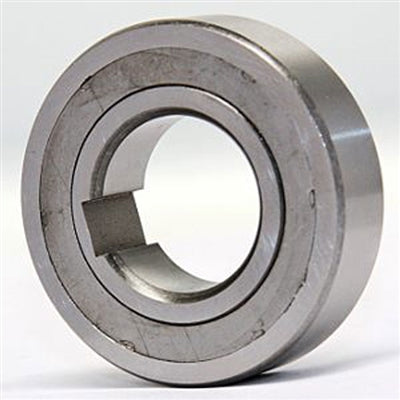

NSS8 is a one-way clutch, that is
used for Overrunning, Indexing and Backstopping, this
type is non-bearing supported, you will need one of the
628 bearings to support it, One way Bearing Sprag/Clutch
Freewheel and also called as Backstops. NSS8 is used in
any application that requires one direction rotation,
such as mining, hydraulic, textile, printing and washing
machines, conveyor systems that carry products to a
higher level should not be reversed because of gravity
during any power shortage.
-
Item: NSS8 Clutch
-
Type: One Way Clutch
-
Applications: Overrunning,
Indexing, Backstopping
-
Dimensions: 8mm x 24mm x
8mm/metric
-
Inner Diameter: 8mm
-
Outer Diameter: 24mm
-
Width: 8mm
-
Torque: 5.4 TKN
-
Max Torque: 0.36 Tr
-
Inner Race Overrun: 3,500
RPM
-
Outer Race Overrun: 5,200
RPM
-
Quantity: One Clutch
|
Dimension (mm)
|
|
d
|
D
|
D1
|
L
|
s
|
e
|
f
|
|
8
|
24
|
25.9
|
8
|
13
|
0.6
|
0.6
|
|
