| bore diameter: | 17 mm | operating temperature range: |
-40 to 120 ºC |
|
| outside diameter: | 40 mm | fillet radius: |
0.6 mm |
|
| outer ring width: | 12 mm | radial dynamic load capacity: |
9600 N |
|
| inner ring width: | 19 mm | radial static load capacity: |
4600 N |
|
| bore type: |
Round |
bearing material: |
Through Hardened Steel |
|
| locking device: |
Eccentric Collar |
finish/coating: |
Uncoated |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
28.60 mm |

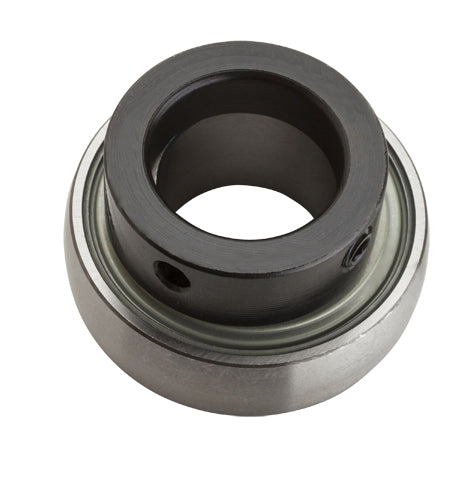

NTN AEL203D1 Ball Insert Bearings |
