| bore diameter: | 1.0000 in | fillet radius: |
0.0394 in |
|
| outside diameter: | 2.0472 in | radial dynamic load capacity: |
3150 lbf |
|
| outer ring width: | 0.5906 in | radial static load capacity: |
1760 lbf |
|
| inner ring width: | 0.8465 in | bearing material: |
Through Hardened Steel |
|
| bore type: |
Round |
finish/coating: |
Uncoated |
|
| locking device: |
Eccentric Collar |
maximum rpm: |
5900 RPM |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
1.2205 in |
series: |
AELS2 |
|
| operating temperature range: |
-40 to 250 ºF |

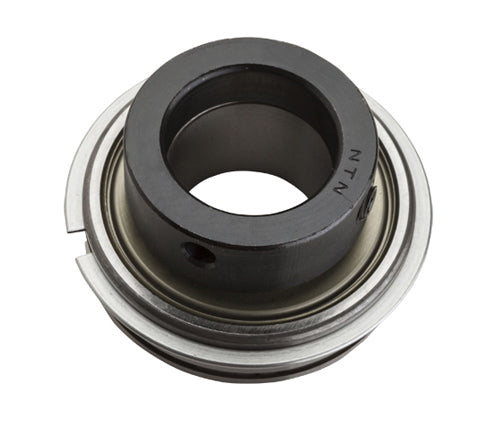

NTN AELS205-100D1NR Ball Insert Bearings |
