| bore diameter: | 40 mm | operating temperature range: |
-40 to 120 ºC |
|
| outside diameter: | 80 mm | fillet radius: |
1.5 mm |
|
| outer ring width: | 18 mm | radial dynamic load capacity: |
29100 N |
|
| inner ring width: | 30.2 mm | radial static load capacity: |
17800 N |
|
| bore type: |
Round |
bearing material: |
Through Hardened Steel |
|
| locking device: |
Eccentric Collar |
finish/coating: |
Uncoated |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
43.70 mm |

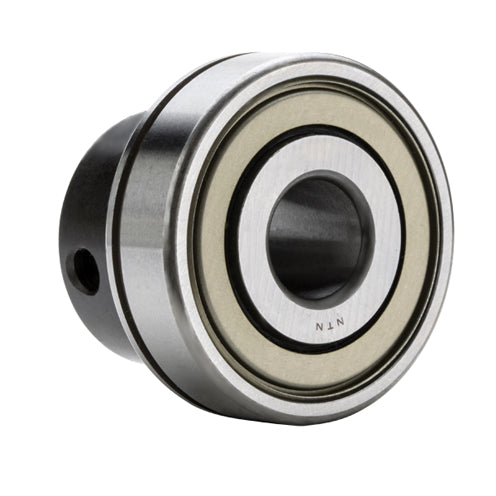

NTN AELS208N Ball Insert Bearings |
