| bore diameter: | 1.3750 in | fillet radius: |
0.0591 in |
|
| outside diameter: | 2.8346 in | radial dynamic load capacity: |
5800 lbf |
|
| outer ring width: | 0.6693 in | radial static load capacity: |
3450 lbf |
|
| inner ring width: | 1.3386 in | bearing material: |
Through Hardened Steel |
|
| bore type: |
Round |
finish/coating: |
Uncoated |
|
| locking device: |
2 -120° Set Screw Collar |
maximum rpm: |
4200 RPM |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
1.3386 in |
series: |
ASS2 |
|
| operating temperature range: |
-40 to 250 ºF |

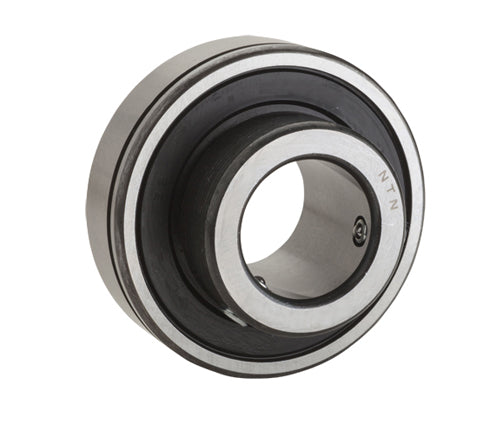

NTN ASS207-106N Ball Insert Bearings |
