| bore diameter: | 1.6250 in | operating temperature range: |
-40 to 250 ºF |
|
| outside diameter: | 3.3465 in | fillet radius: |
0.0591 in |
|
| outer ring width: | 0.8661 in | radial dynamic load capacity: |
7300 lbf |
|
| inner ring width: | 1.6850 in | radial static load capacity: |
4600 lbf |
|
| bore type: |
Round |
bearing material: |
Through Hardened Steel |
|
| locking device: |
Eccentric Collar |
finish/coating: |
Uncoated |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
2.2165 in |

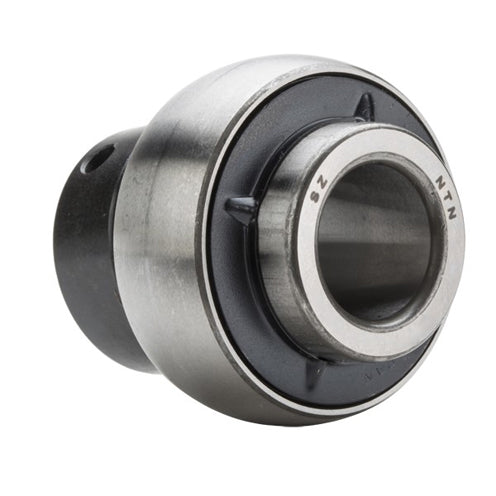

NTN A-UEL209-110D1 Ball Insert Bearings |
