| bore diameter: | 1.0000 in | fillet radius: |
0.0394 in |
|
| outside diameter: | 2.0472 in | radial dynamic load capacity: |
3150 lbf |
|
| outer ring width: | 0.5906 in | radial static load capacity: |
1760 lbf |
|
| inner ring width: | 0.8465 in | bearing material: |
Through Hardened Steel |
|
| bore type: |
Round |
finish/coating: |
Uncoated |
|
| locking device: |
Eccentric Collar |
seal type: |
Contact |
|
| duty type: |
Standard Duty |
series: |
JEL2 |
|
| overall width: |
1.2205 in |

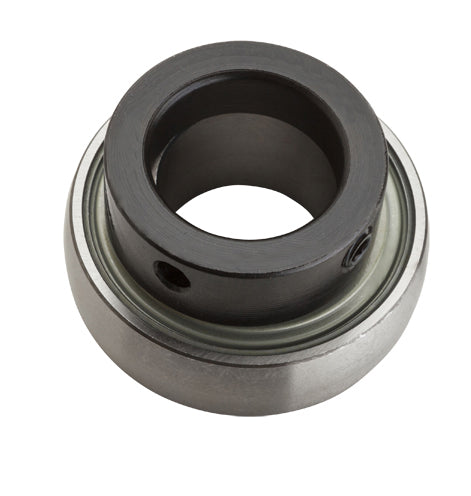

NTN JEL205-100D1 Ball Insert Bearings |
