| bore diameter: | 1.0000 in | fillet radius: |
0.0197 in |
|
| outside diameter: | 2.0472 in | radial dynamic load capacity: |
2470 lbf |
|
| outer ring width: | 0.6693 in | radial static load capacity: |
1800 lbf |
|
| inner ring width: | 1.3425 in | bearing material: |
Stainless Steel |
|
| bore type: |
Round |
finish/coating: |
Uncoated |
|
| locking device: |
Set Screw Collar |
seal type: |
Contact |
|
| overall width: |
1.3425 in |

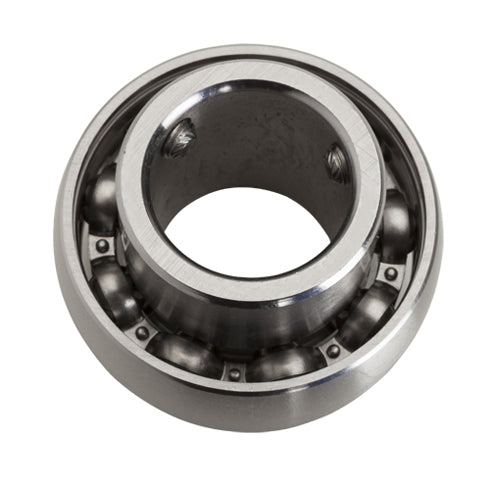

NTN SUC205-16 Ball Insert Bearings |
