| bore diameter: | 1.7500 in | fillet radius: |
0.0394 in |
|
| outside diameter: | 3.3465 in | radial dynamic load capacity: |
5800 lbf |
|
| outer ring width: | 0.8661 in | radial static load capacity: |
4700 lbf |
|
| inner ring width: | 1.9370 in | bearing material: |
Stainless Steel |
|
| bore type: |
Round |
finish/coating: |
Uncoated |
|
| locking device: |
Set Screw Collar |
seal type: |
Contact |
|
| overall width: |
1.9370 in |

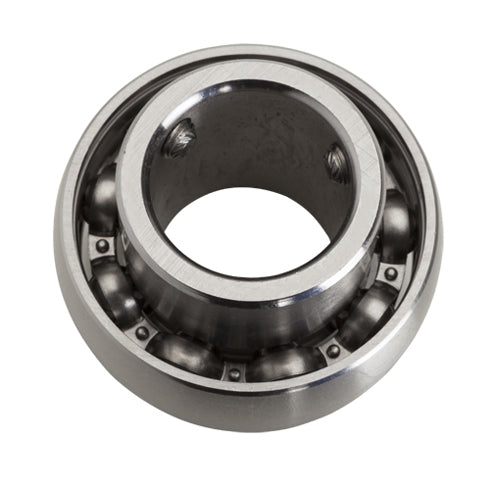

NTN SUC209-28 Ball Insert Bearings |
