| bore diameter: | 60 mm | fillet radius: |
2.5 mm |
|
| outside diameter: | 130 mm | radial dynamic load capacity: |
82000 N |
|
| outer ring width: | 35 mm | radial static load capacity: |
52000 N |
|
| inner ring width: | 71 mm | bearing material: |
Through Hardened Steel |
|
| bore type: |
Round |
finish/coating: |
Uncoated |
|
| locking device: |
Set Screw Collar |
seal type: |
Contact |
|
| duty type: |
Heavy Duty |
series: |
UC3 |
|
| overall width: |
71 mm |

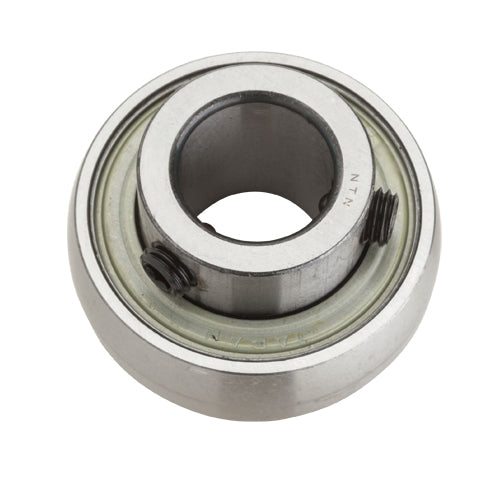

NTN UC312D1 Ball Insert Bearings |
