| bore diameter: | 1.2500 in | operating temperature range: |
-40 to 250 ºF |
|
| outside diameter: | 2.4409 in | fillet radius: |
0.0394 in |
|
| outer ring width: | 0.7480 in | radial dynamic load capacity: |
4400 lbf |
|
| inner ring width: | 1.5000 in | radial static load capacity: |
2540 lbf |
|
| bore type: |
Round |
bearing material: |
Through Hardened Steel |
|
| locking device: |
2 -120° Set Screw Collar |
finish/coating: |
Uncoated |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
1.5000 in |

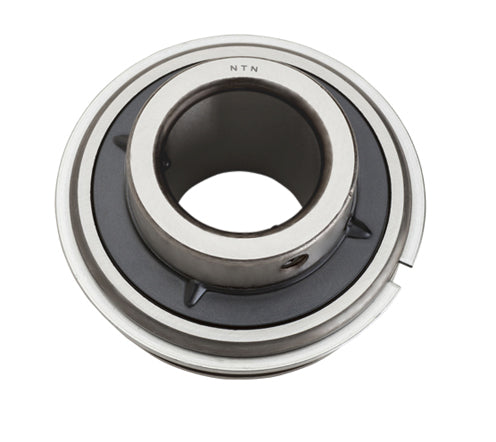

NTN UCS206-104LD1NR Ball Insert Bearings |
