| bore diameter: | 35 mm | fillet radius: |
1.5 mm |
|
| outside diameter: | 72 mm | radial dynamic load capacity: |
25700 N |
|
| outer ring width: | 20 mm | radial static load capacity: |
15300 N |
|
| inner ring width: | 42.9 mm | bearing material: |
Through Hardened Steel |
|
| bore type: |
Round |
finish/coating: |
Uncoated |
|
| locking device: |
2 -120° Set Screw Collar |
seal type: |
Contact |
|
| duty type: |
Standard Duty |
series: |
UCS2 |
|
| overall width: |
42.90 mm |

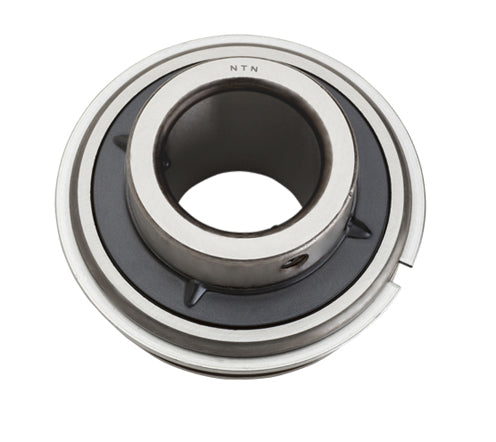

NTN UCS207LD1NR Ball Insert Bearings |
