| bore diameter: | 2.0000 in | fillet radius: |
0.0787 in |
|
| outside diameter: | 3.9370 in | radial dynamic load capacity: |
9800 lbf |
|
| outer ring width: | 0.9843 in | radial static load capacity: |
6550 lbf |
|
| inner ring width: | 2.1890 in | bearing material: |
Through Hardened Steel |
|
| bore type: |
Round |
finish/coating: |
Uncoated |
|
| locking device: |
2 -120° Set Screw Collar |
maximum rpm: |
3500 RPM |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
2.1890 in |
series: |
UCS2 |
|
| operating temperature range: |
-40 to 250 ºF |

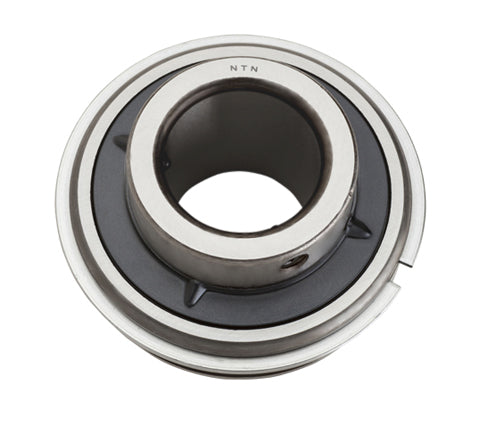

NTN UCS211-200LD1NR Ball Insert Bearings |
