| bore diameter: | 0.9375 in | radial dynamic load capacity: |
3150 lbf |
|
| outside diameter: | 2.0472 in | radial static load capacity: |
1760 lbf |
|
| outer ring width: | 0.6693 in | bearing material: |
Through Hardened Steel |
|
| inner ring width: | 1.3740 in | finish/coating: |
Uncoated |
|
| bore type: |
Round |
maximum rpm: |
5900 RPM |
|
| locking device: |
Eccentric Collar |
seal type: |
Contact |
|
| duty type: |
Standard Duty |
locking device part number: | UELF205-015D1, UELFL205-015D1, UELFLU205-015D1, UELP205-015D1, UELPL205-015D1 | |
| overall width: |
1.7480 in |
series: |
UEL2 |
|
| operating temperature range: |
-40 to 250 ºF |

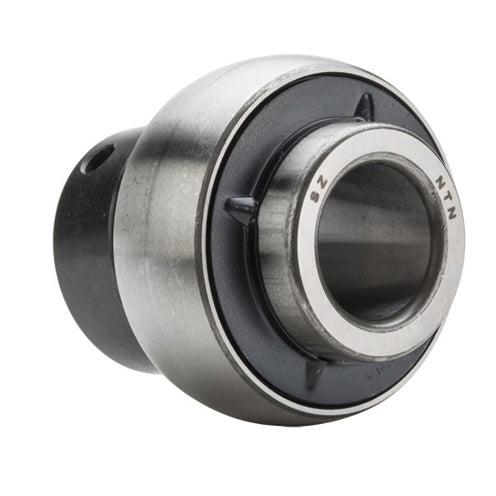

NTN UEL205-015D1 Ball Insert Bearings |
