| bore diameter: | 1.1875 in | radial dynamic load capacity: |
4400 lbf |
|
| outside diameter: | 2.4409 in | radial static load capacity: |
2540 lbf |
|
| outer ring width: | 0.7480 in | bearing material: |
Through Hardened Steel |
|
| inner ring width: | 1.4370 in | finish/coating: |
Uncoated |
|
| bore type: |
Round |
maximum rpm: |
4900 RPM |
|
| locking device: |
Eccentric Collar |
seal type: |
Contact |
|
| duty type: |
Standard Duty |
locking device part number: | UELF206-103D1, UELFL206-103D1, UELFLU206-103D1, UELP206-103D1, UELPL206-103D1 | |
| overall width: |
1.9055 in |
series: |
UEL2 |
|
| operating temperature range: |
-40 to 250 ºF |

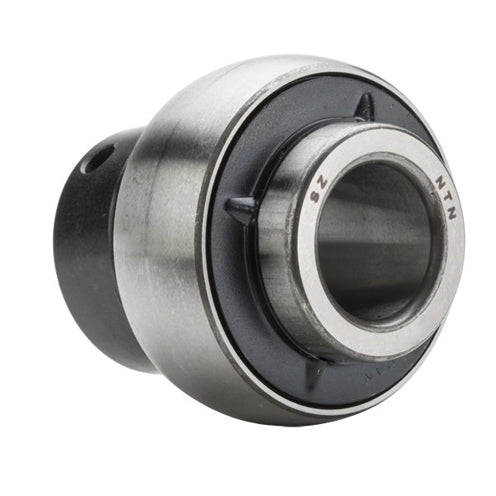

NTN UEL206-103D1 Ball Insert Bearings |
