| bore diameter: | 30 mm | operating temperature range: |
-40 to 120 ºC |
|
| outside diameter: | 62 mm | fillet radius: |
1 mm |
|
| outer ring width: | 19 mm | radial dynamic load capacity: |
19500 N |
|
| inner ring width: | 36.5 mm | radial static load capacity: |
11300 N |
|
| bore type: |
Round |
bearing material: |
Through Hardened Steel |
|
| locking device: |
Eccentric Collar |
finish/coating: |
Uncoated |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
48.40 mm |

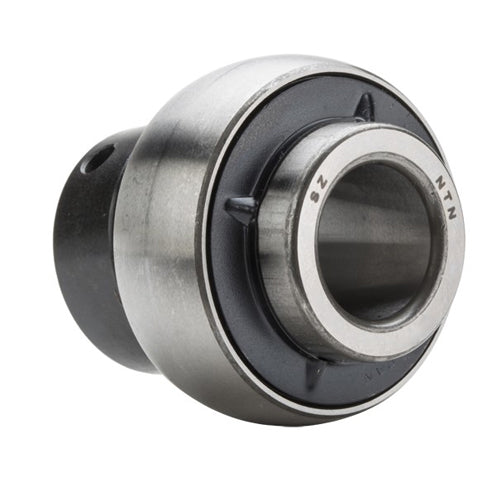

NTN UEL206D1 Ball Insert Bearings |
