| bore diameter: | 1.2500 in | radial dynamic load capacity: |
5800 lbf |
|
| outside diameter: | 2.8346 in | radial static load capacity: |
3450 lbf |
|
| outer ring width: | 0.7874 in | bearing material: |
Through Hardened Steel |
|
| inner ring width: | 1.4803 in | finish/coating: |
Uncoated |
|
| bore type: |
Round |
maximum rpm: |
4200 RPM |
|
| locking device: |
Eccentric Collar |
seal type: |
Contact |
|
| duty type: |
Standard Duty |
locking device part number: | UELF207-104D1, UELFL207-104D1, UELFLU207-104D1, UELP207-104D1, UELPL207-104D1 | |
| overall width: |
2.0118 in |
series: |
UEL2 |
|
| operating temperature range: |
-40 to 250 ºF |

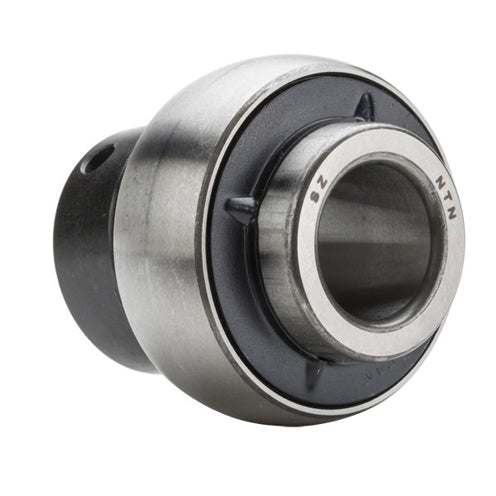

NTN UEL207-104D1 Ball Insert Bearings |
