| bore diameter: | 1.6875 in | radial dynamic load capacity: |
7300 lbf |
|
| outside diameter: | 3.3465 in | radial static load capacity: |
4600 lbf |
|
| outer ring width: | 0.8661 in | bearing material: |
Through Hardened Steel |
|
| inner ring width: | 1.6850 in | finish/coating: |
Uncoated |
|
| bore type: |
Round |
maximum rpm: |
3500 RPM |
|
| locking device: |
Eccentric Collar |
seal type: |
Contact |
|
| duty type: |
Standard Duty |
locking device part number: | UELF209-111D1, UELFL209-111D1, UELFLU209-111D1, UELP209-111D1, UELPL209-111D1 | |
| overall width: |
2.2165 in |
series: |
UEL2 |
|
| operating temperature range: |
-40 to 250 ºF |

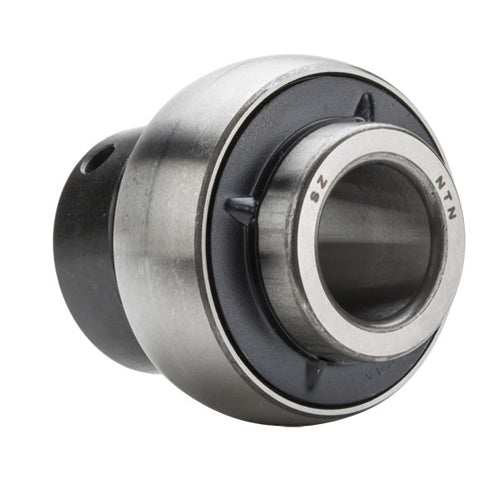

NTN UEL209-111D1 Ball Insert Bearings |
