| bore diameter: | 55 mm | operating temperature range: |
-40 to 120 ºC |
|
| outside diameter: | 100 mm | fillet radius: |
2 mm |
|
| outer ring width: | 25 mm | radial dynamic load capacity: |
43500 N |
|
| inner ring width: | 55.50 mm | radial static load capacity: |
29200 N |
|
| bore type: |
Round |
bearing material: |
Through Hardened Steel |
|
| locking device: |
Eccentric Collar |
finish/coating: |
Uncoated |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
71.40 mm |

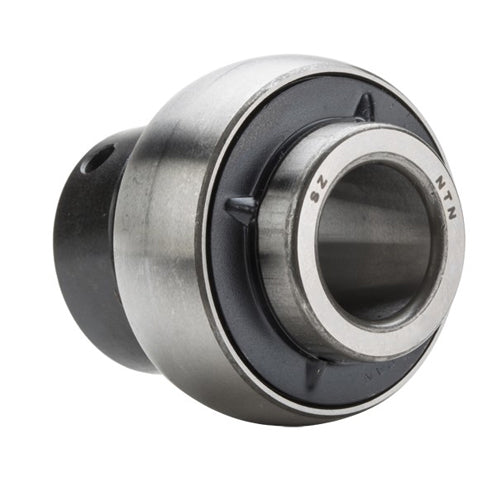

NTN UEL211D1 Ball Insert Bearings |
