| bore diameter: | 2.5000 in | operating temperature range: |
-40 to 250 ºF |
|
| outside diameter: | 4.7244 in | fillet radius: |
0.0787 in |
|
| outer ring width: | 1.2598 in | radial dynamic load capacity: |
12900 lbf |
|
| inner ring width: | 2.6890 in | radial static load capacity: |
9000 lbf |
|
| bore type: |
Round |
bearing material: |
Through Hardened Steel |
|
| locking device: |
Eccentric Collar |
finish/coating: |
Uncoated |
|
| duty type: |
Standard Duty |
seal type: |
Contact |
|
| overall width: |
3.3740 in |

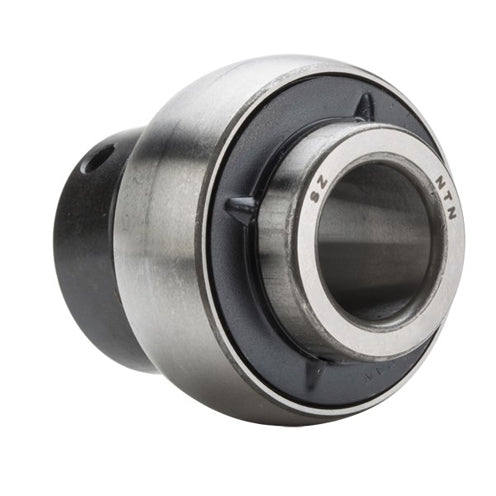

NTN UEL213-208D1 Ball Insert Bearings |
