| bore diameter: | 1.5000 in | operating temperature range: |
-40 to 250 ºF |
|
| outside diameter: | 3.5433 in | fillet radius: |
0.0787 in |
|
| outer ring width: | 1.0630 in | radial dynamic load capacity: |
9100 lbf |
|
| inner ring width: | 1.6260 in | radial static load capacity: |
5400 lbf |
|
| bore type: |
Round |
bearing material: |
Through Hardened Steel |
|
| locking device: |
Eccentric Collar |
finish/coating: |
Uncoated |
|
| duty type: |
Heavy Duty |
seal type: |
Contact |
|
| overall width: |
2.2480 in |

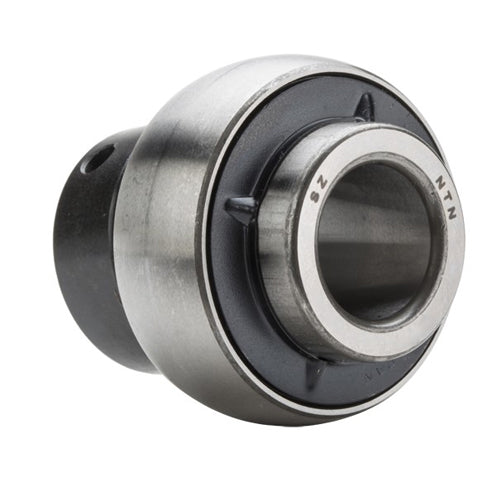

NTN UEL308-108D1 Ball Insert Bearings |
