| bore diameter: | 100 mm | operating temperature range: |
-40 to 120 ºC |
|
| outside diameter: | 215 mm | radial dynamic load capacity: |
173000 N |
|
| outer ring width: | 55 mm | radial static load capacity: |
141000 N |
|
| inner ring width: | 73 mm | bearing material: |
Through Hardened Steel |
|
| bore type: |
Tapered 1:12 |
finish/coating: |
Uncoated |
|
| locking device: |
Adapter Mount |
seal type: |
Contact |
|
| duty type: |
Intermediate Duty |
series: |
UK3 |
|
| overall width: |
73 mm |

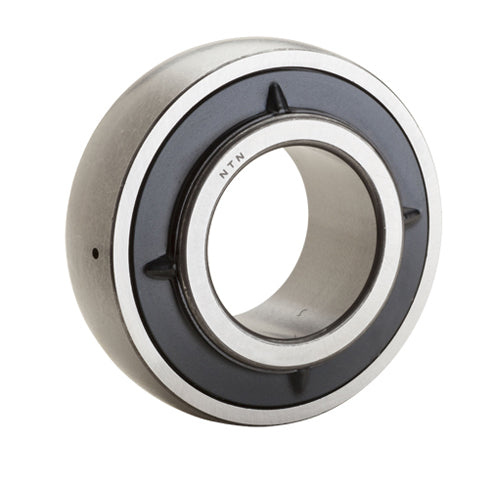

NTN UK320D1 Ball Insert Bearings |
